Smart Curtain Bot Remote Control Intelligent Robot

Smart Curtain Bot Remote Control Intelligent Curtain Robot Automating Your Curtains Makes Any Curtain Remote Control Automatic ( home founding - homefounding.com ) 1

Smart Curtain Bot Remote Control Intelligent Robot

Smart Curtain Bot Remote Control Intelligent Curtain Robot Automating Your Curtains Makes Any Curtain Remote Control Automatic

Size: 69mm * 113mm * 56mm Communication specifications: wireless remote control Communication distance: about 10m

Small and exquisite.

The installation position of the curtain motor is just hidden inside the curtain folds. Will not affect the overall home effect of the room.

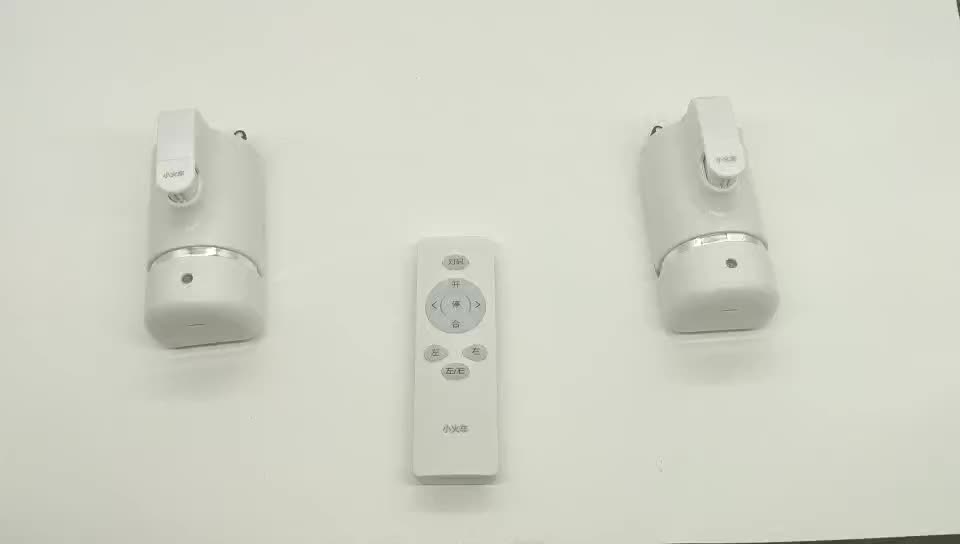

Pairing method of remote control and motor

Pairing steps of the left motor:

1. Remove the battery cover on the back of the motor and put 2 rechargeable batteries into the battery slot. 2. The LED light on the front of the motor is red. Press the “button” on the front of the motor once, and the LED light will turn purple. (Complete the action within 10 seconds. If the button action is not completed within 10 seconds, you need to remove the battery and press the “button key” on the front of the motor within 10 seconds) 3. When the LED light is purple, press the “left” button on the remote control. 4. Press the “code matching button” on the remote control again, at this time, the purple LED light goes out. It means that the code matching of the left motor is successful.

Pairing steps of the right motor:

1. Remove the battery cover on the back of the motor and put 2 rechargeable batteries into the battery slot. 2. The LED light on the front of the motor is red. Press the “button” on the front of the motor once, and the LED light will turn purple. (Complete the action within 10 seconds. If the button action is not completed within 10 seconds, you need to remove the battery and press the “button key” on the front of the motor within 10 seconds) 3. When the LED light is purple, press the “right” button on the remote control. 4. Press the “code matching button” on the remote control again, at this time, the purple LED light goes out. It means that the right motor is successfully coded.

Enjoy life quietly

According to research data, a noise of 10-20 decibels is an ideal sleeping environment. Help relieve mental fatigue, improve sleep quality, improve work and study efficiency

The track used by the motor

Use track data: A: greater than 6.5mm B: greater than 1.5mm, less than 2.5mm C: greater than 6.5mm, less than 7.5mm D: greater than 14.5mm

Easy to install

No installation tools are required. 1. Remove the first hook of the curtain. 2. The motor is installed between the first and second ball 3. After making sure that the motor is hung firmly, hang the curtain back.

Accessory

The electric curtain motor can be hung directly on the square rail, and the weight of the driving curtain is about 6kg
